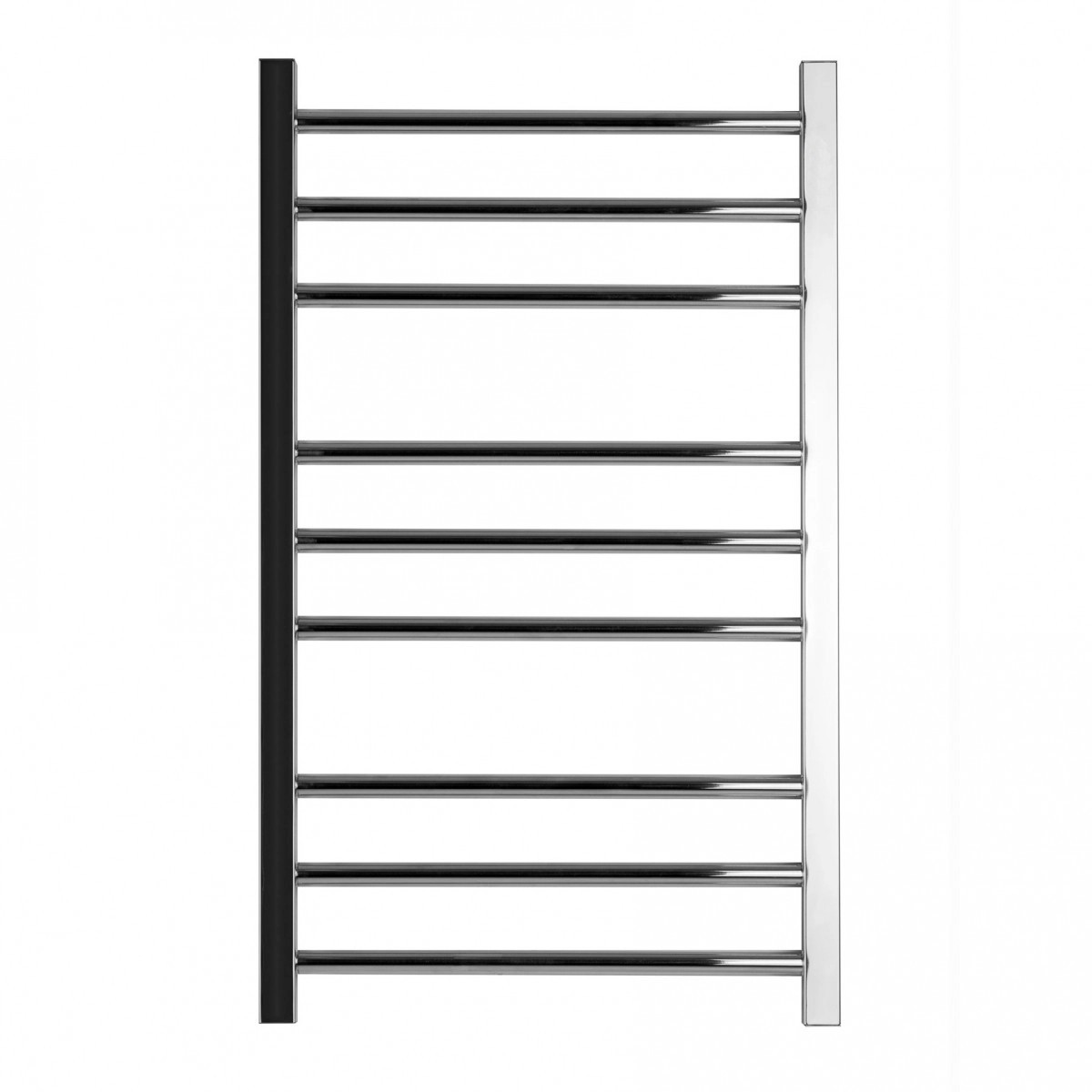

It has collectors made of a square profile pipe and lintels made of round pipes. This combination creates a perfectly classic design, enveloping you with a sense of calm and confidence.
COLOR:
USER MANUAL:
MODEL RANGE
| MODEL | COLOR | SIZE (W*H*D), mm | HEAT OUTPUT, W |

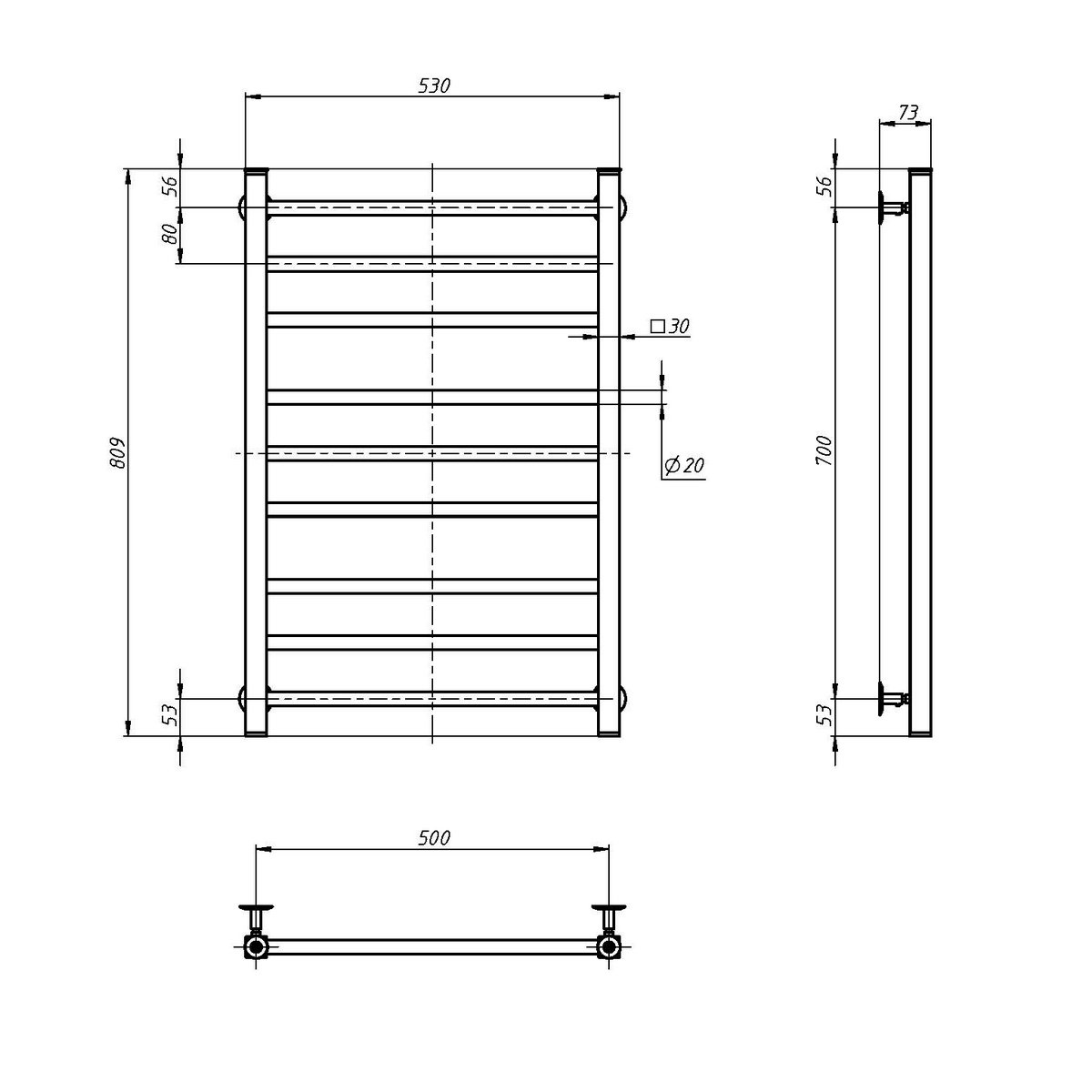

| 00-016050-5080 | Chrome | 530*809*73 | 348 |

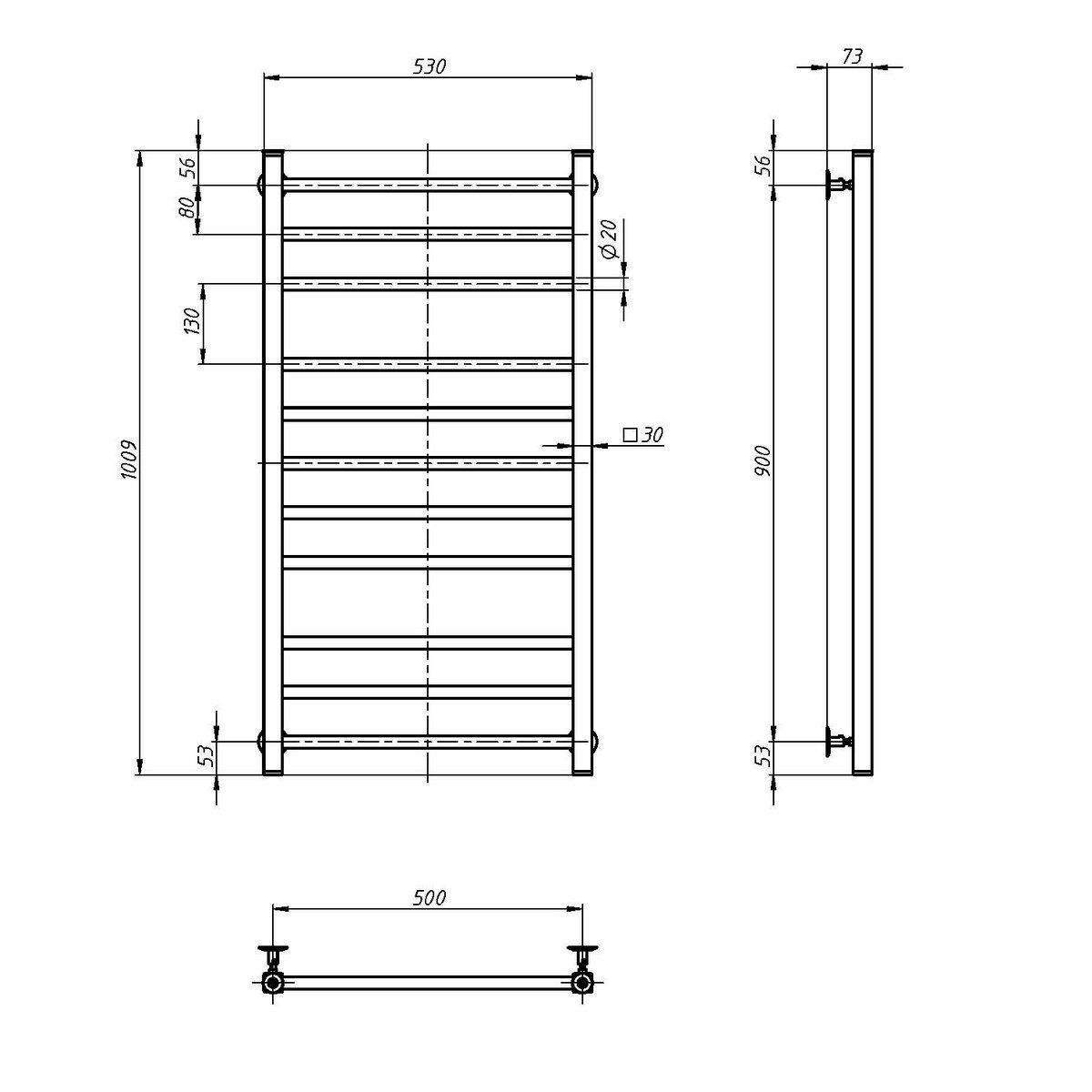

| 00-016050-5010 | Chrome | 530*1009*73 | 421 |

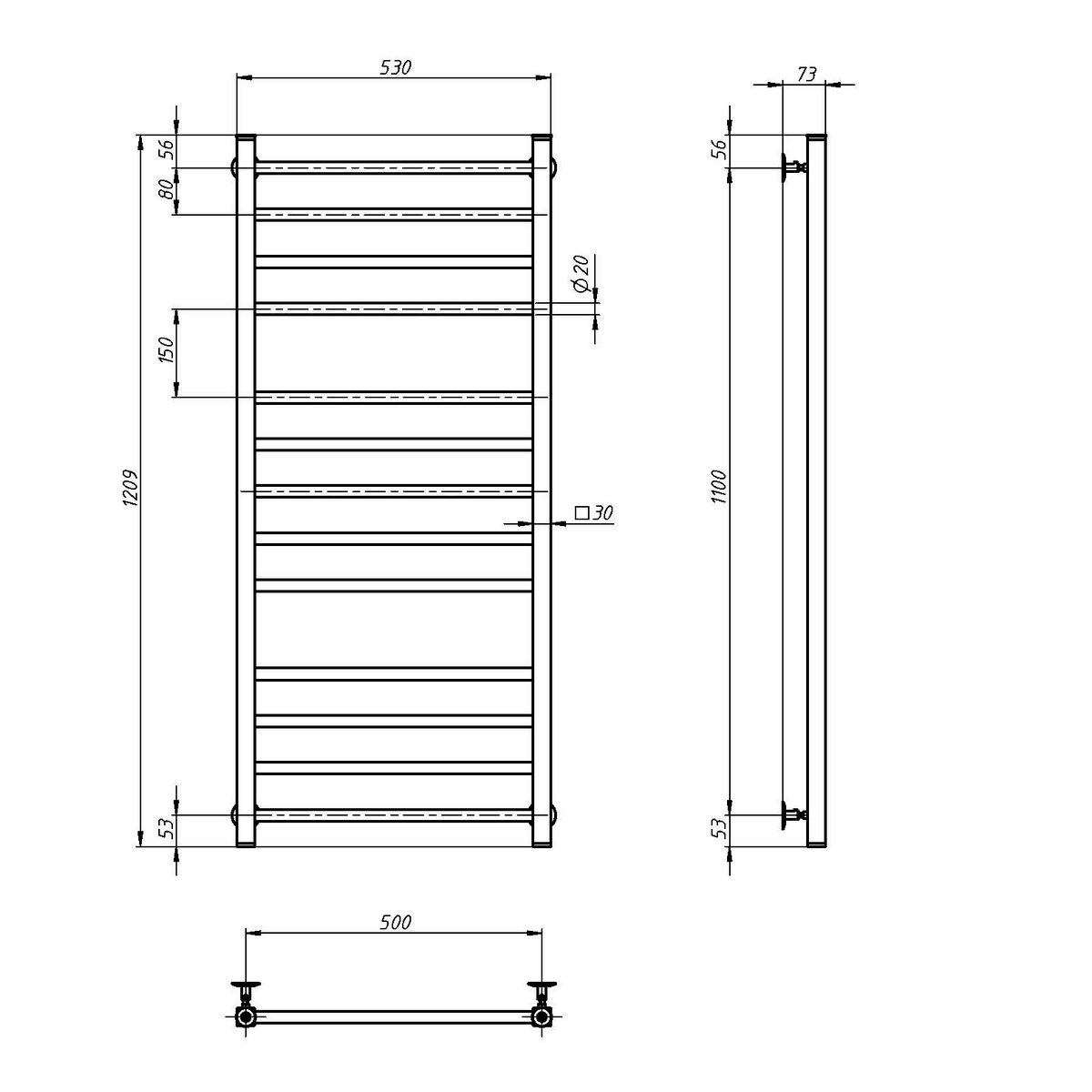

| 00-016050-5012 | Chrome | 530*1209*73 | 500 |
CLASSIC QUADRO Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - ⌀20 mm
CLASSIC QUADRO Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - ⌀20 mm
CLASSIC QUADRO Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - ⌀20 mm
