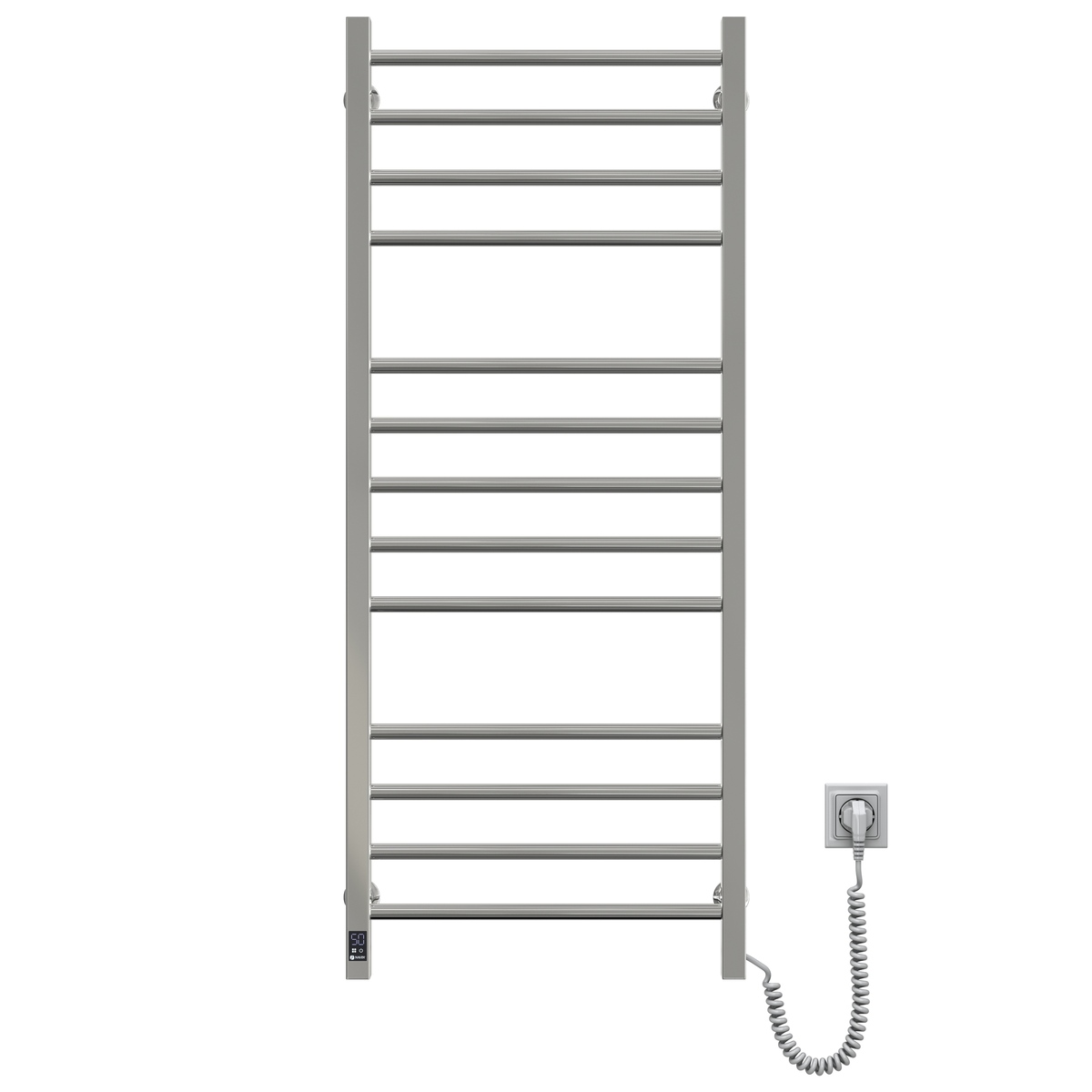

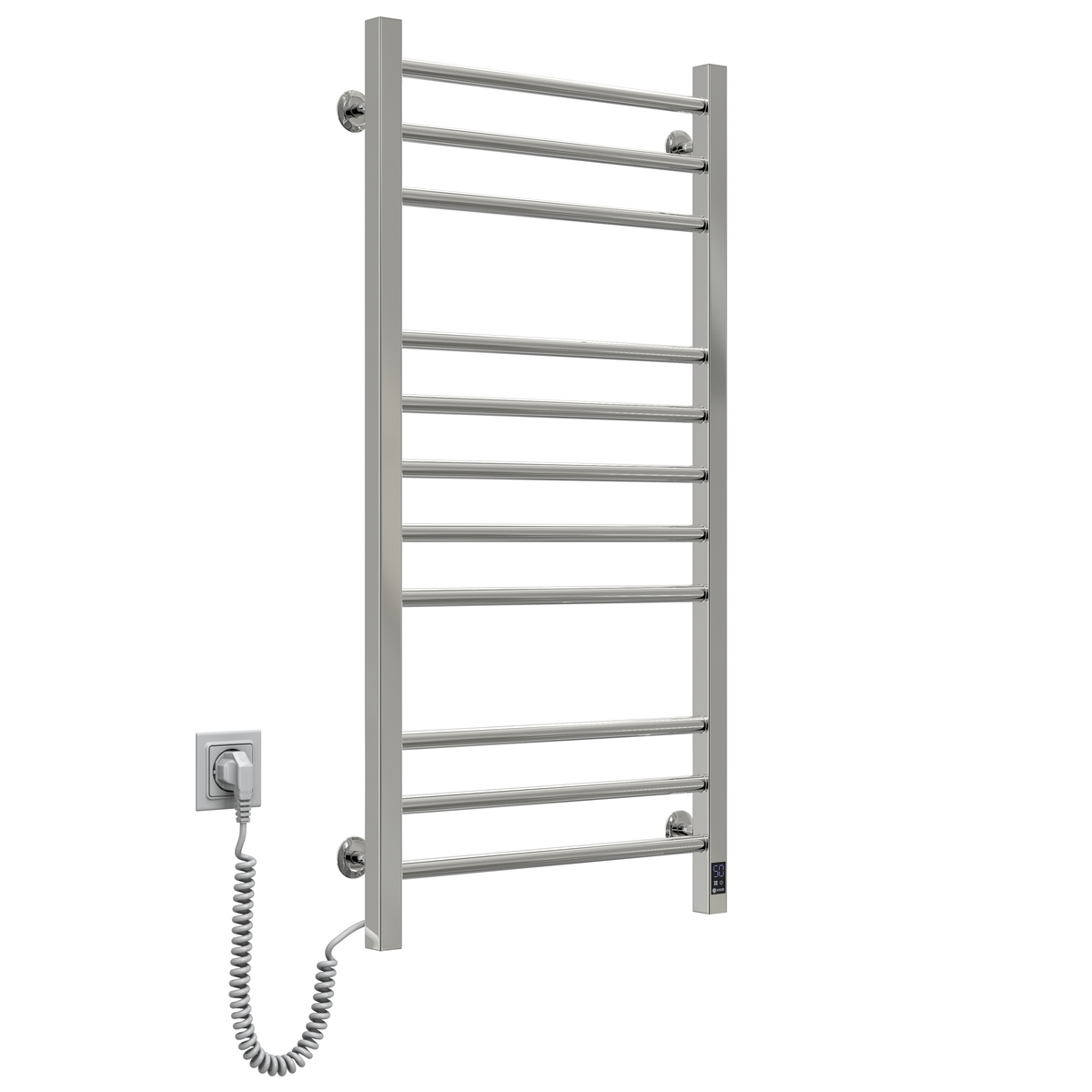

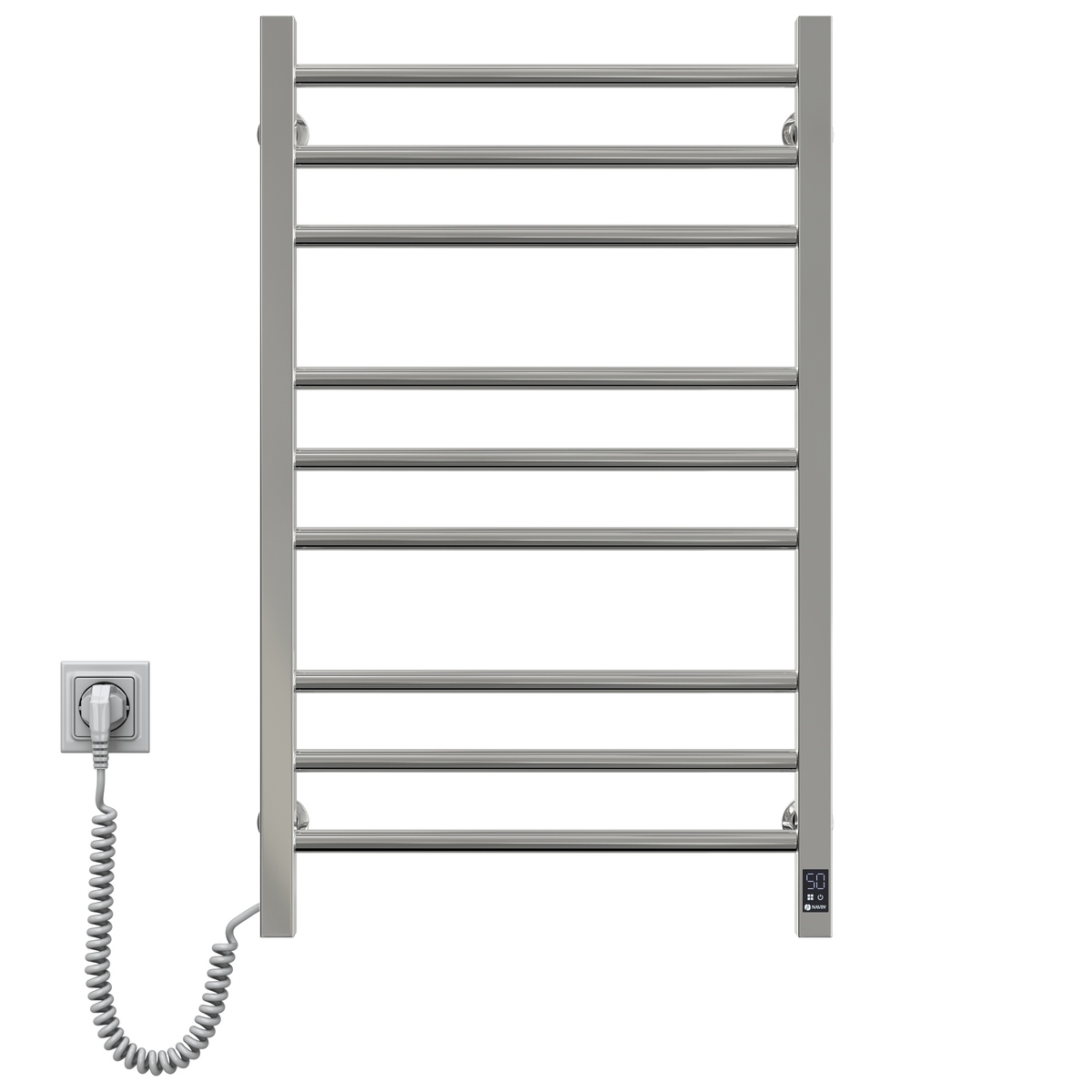

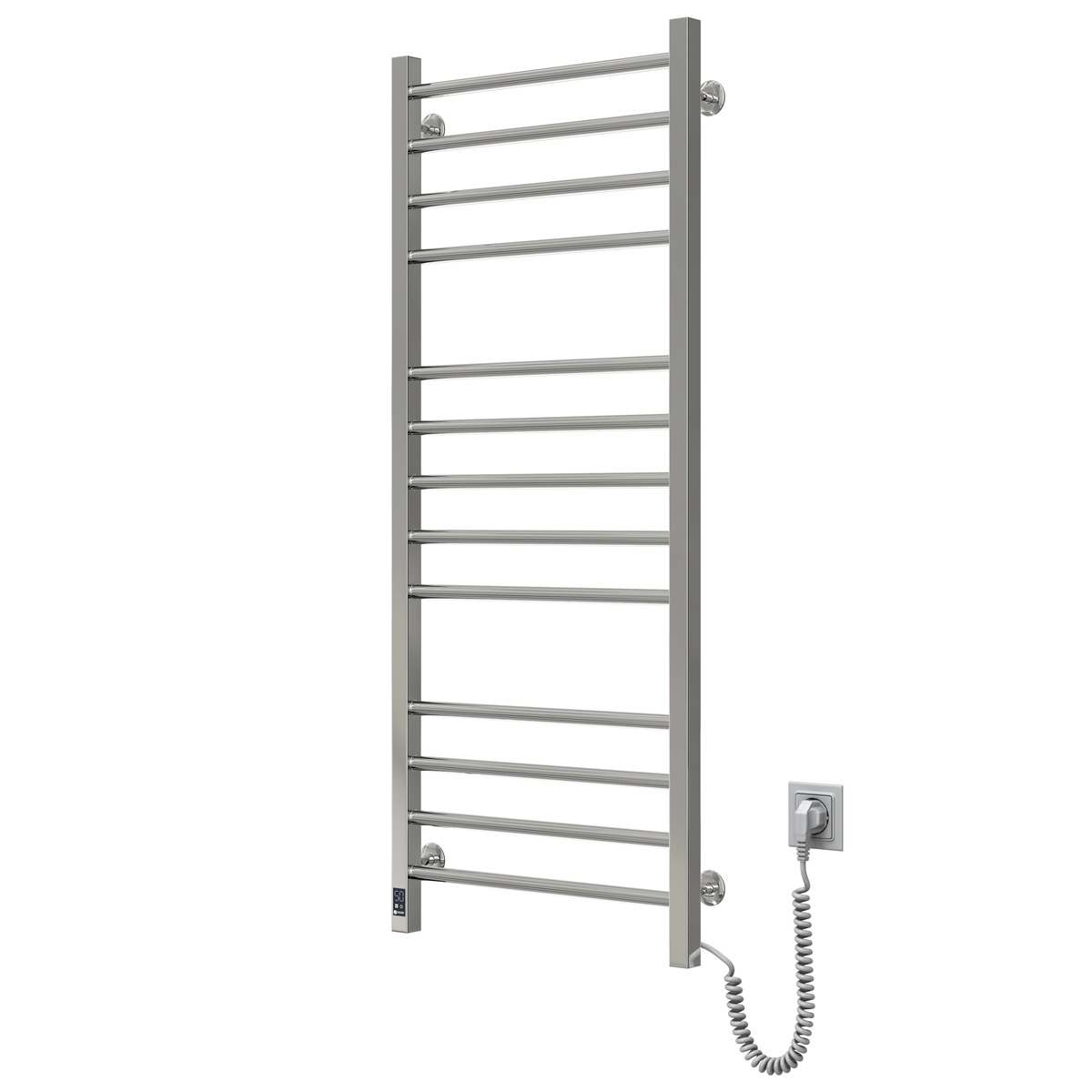

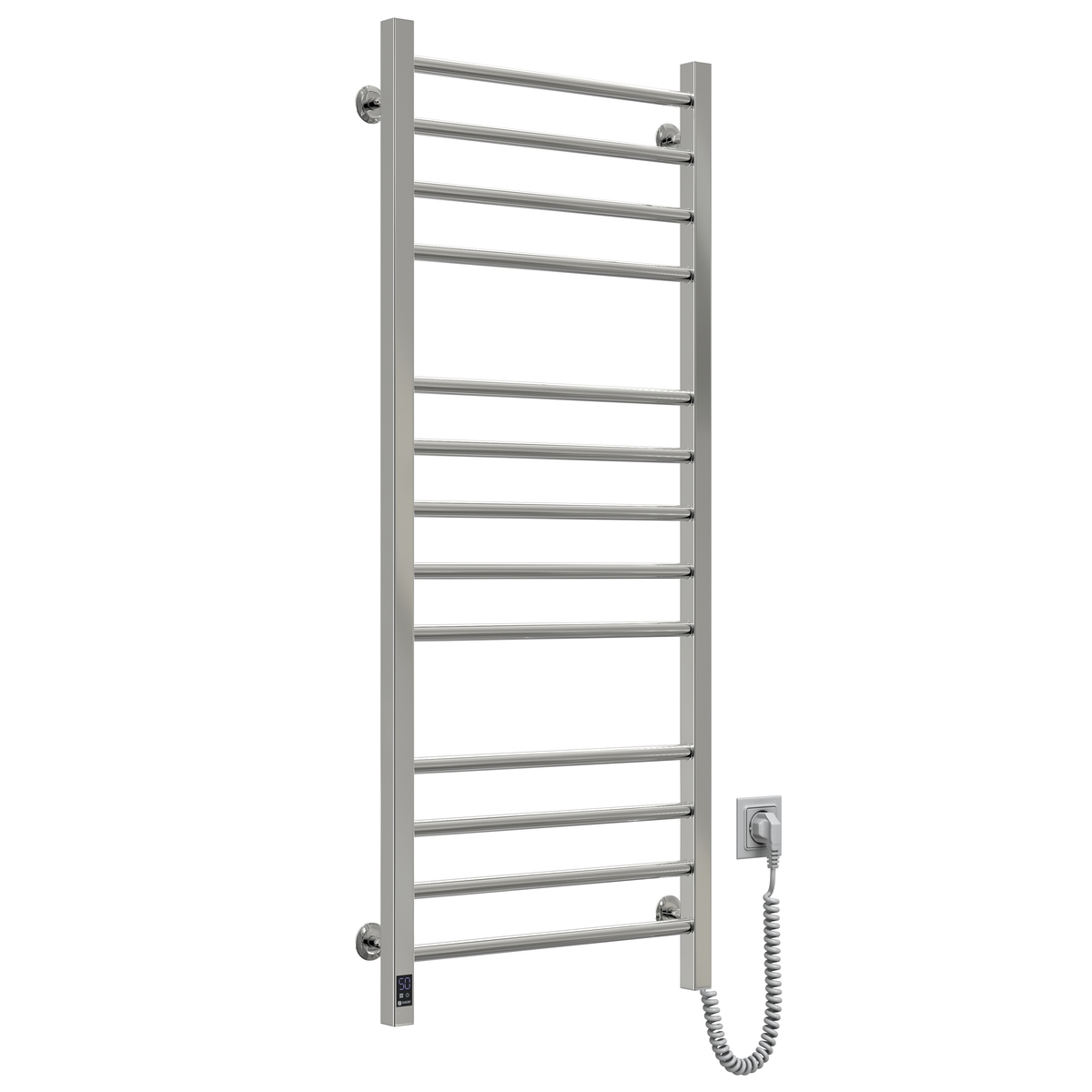

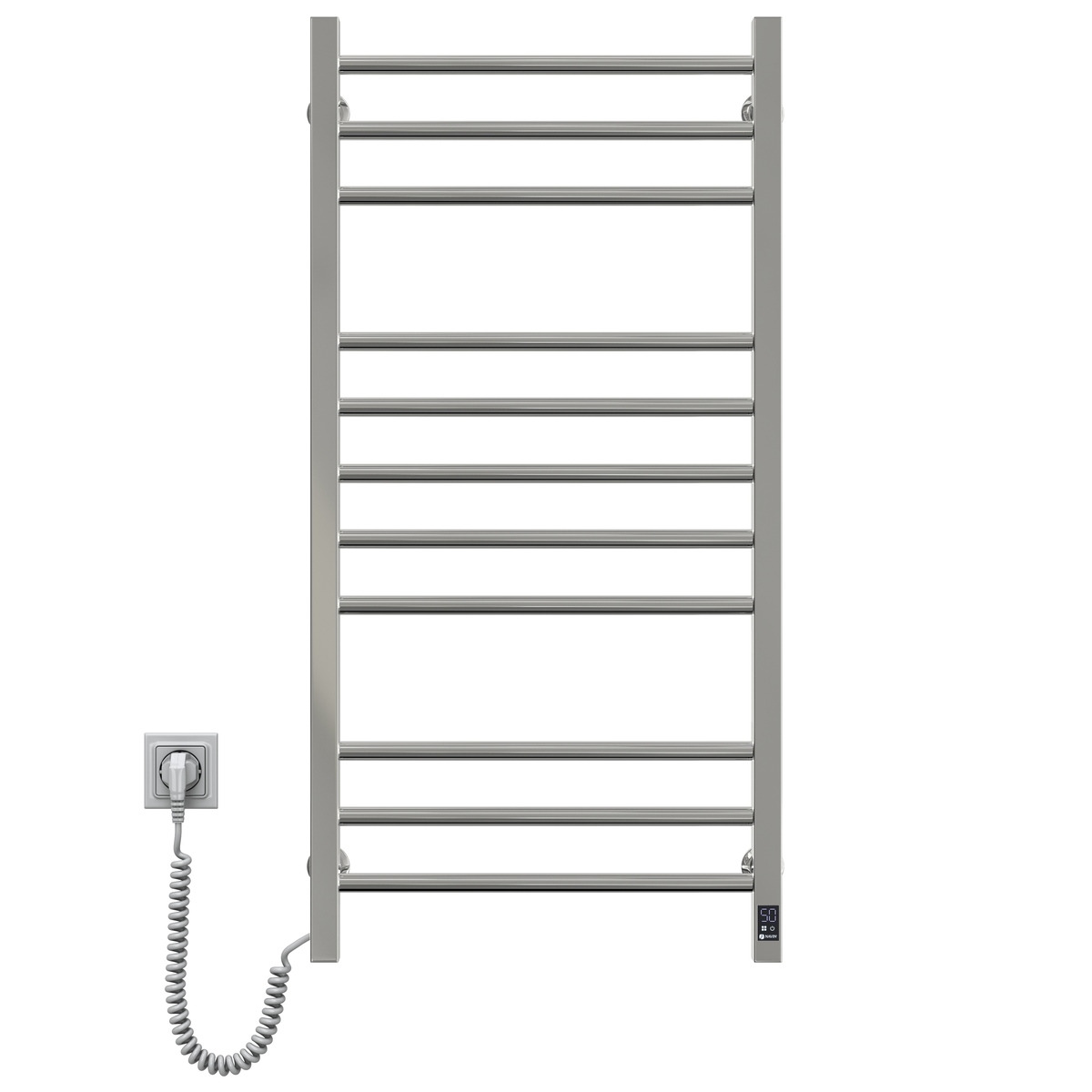

It has collectors made of a square profile pipe and lintels made of round pipes. This combination creates a perfectly classic design, enveloping you with a sense of calm and confidence.

COLOR:

USER MANUAL:

MODEL RANGE

MODEL SIDE POWER OFF COLOR SIZE (W*H*D), mm POWER CONSUPTION, W
10-016053-5080 Right Chrome 500*802*71 104

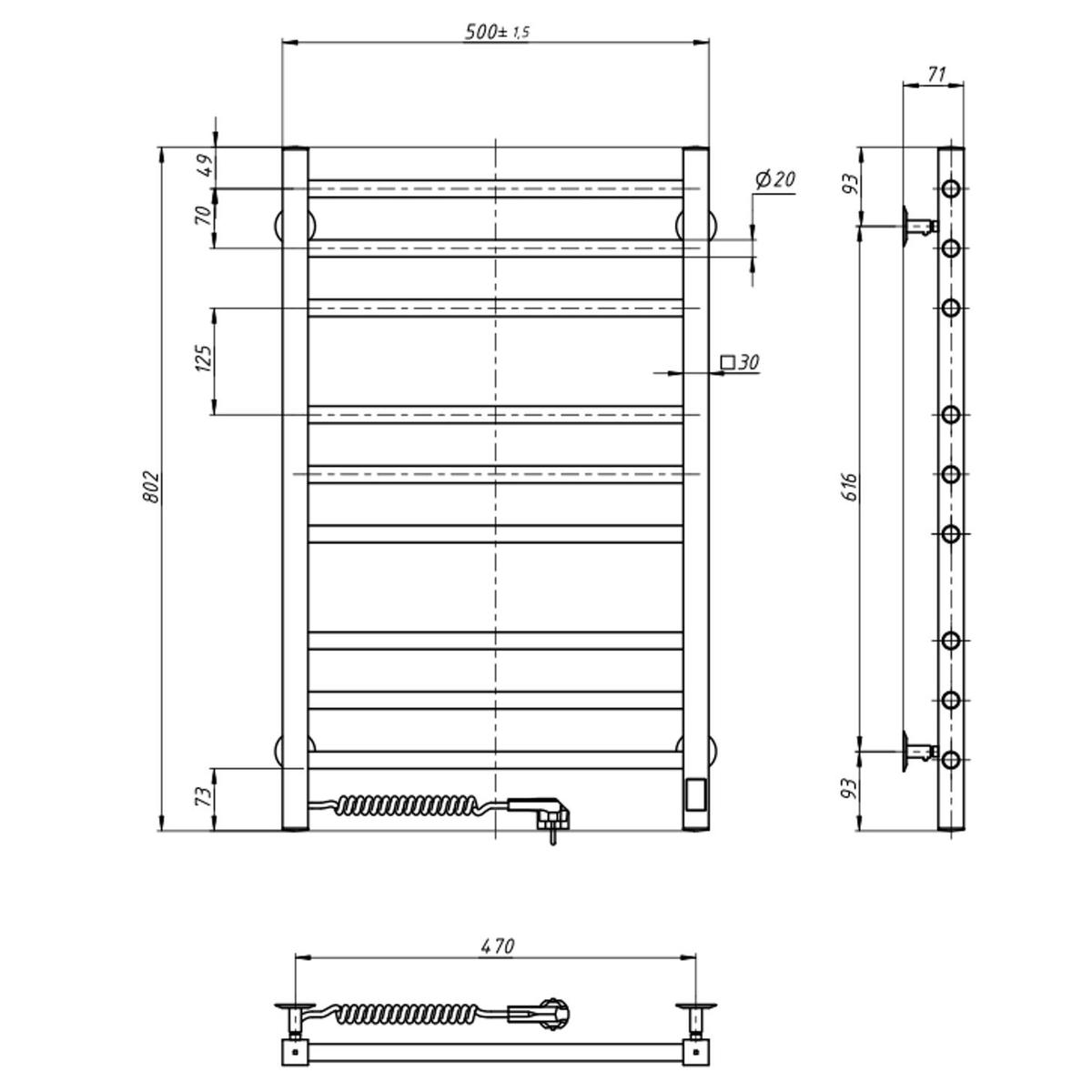

10-016153-5080 Left Chrome 500*802*71 104
10-016053-5010 Right Chrome 500*1002*71 120

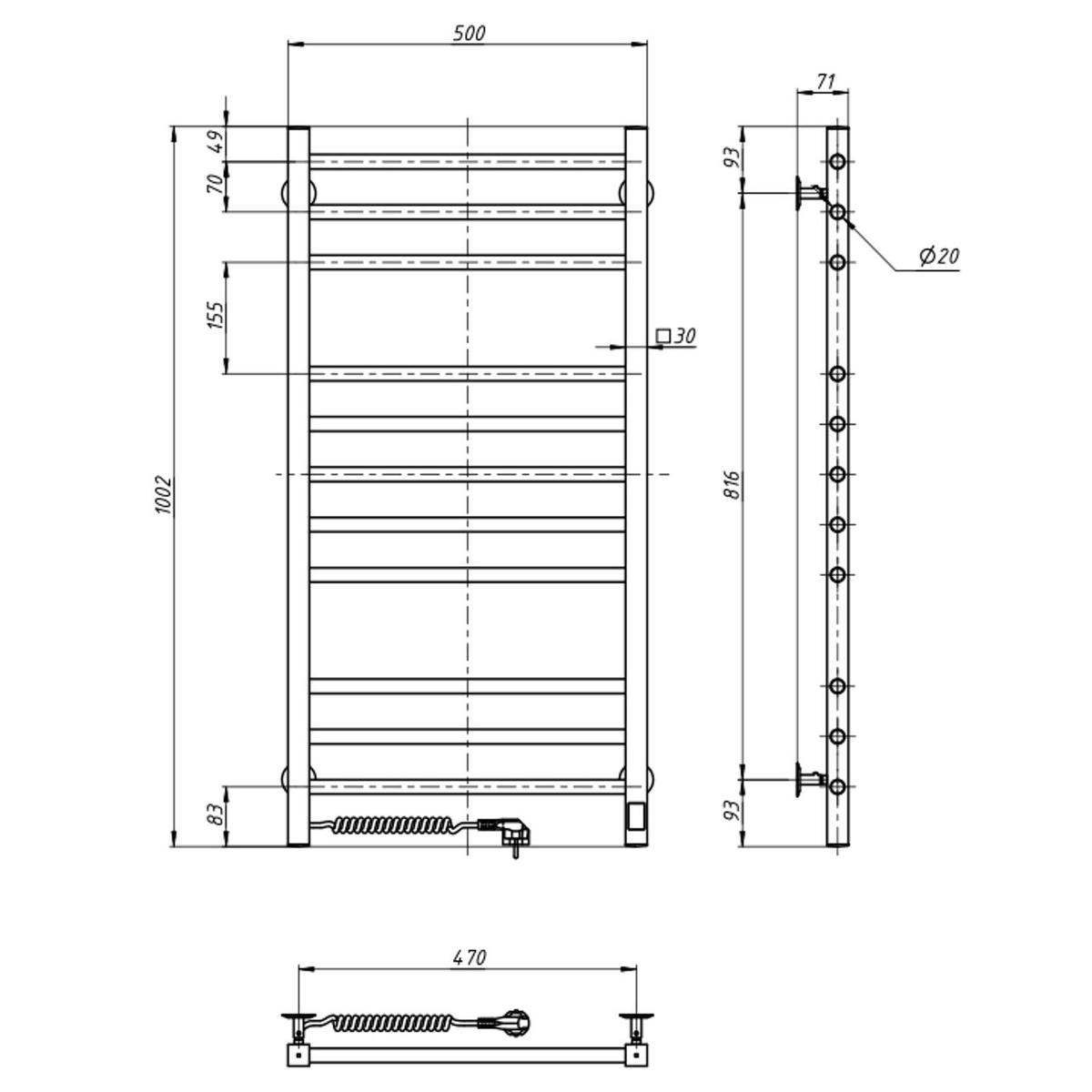

10-016153-5010 Left Chrome 500*1002*71 120
WordPress Tables Plugin


Classic Quadro Line


Material: stainless steel
Connection: left / right
Operating temperature: 55 °C +/- 5 °C
Protection type: IP44

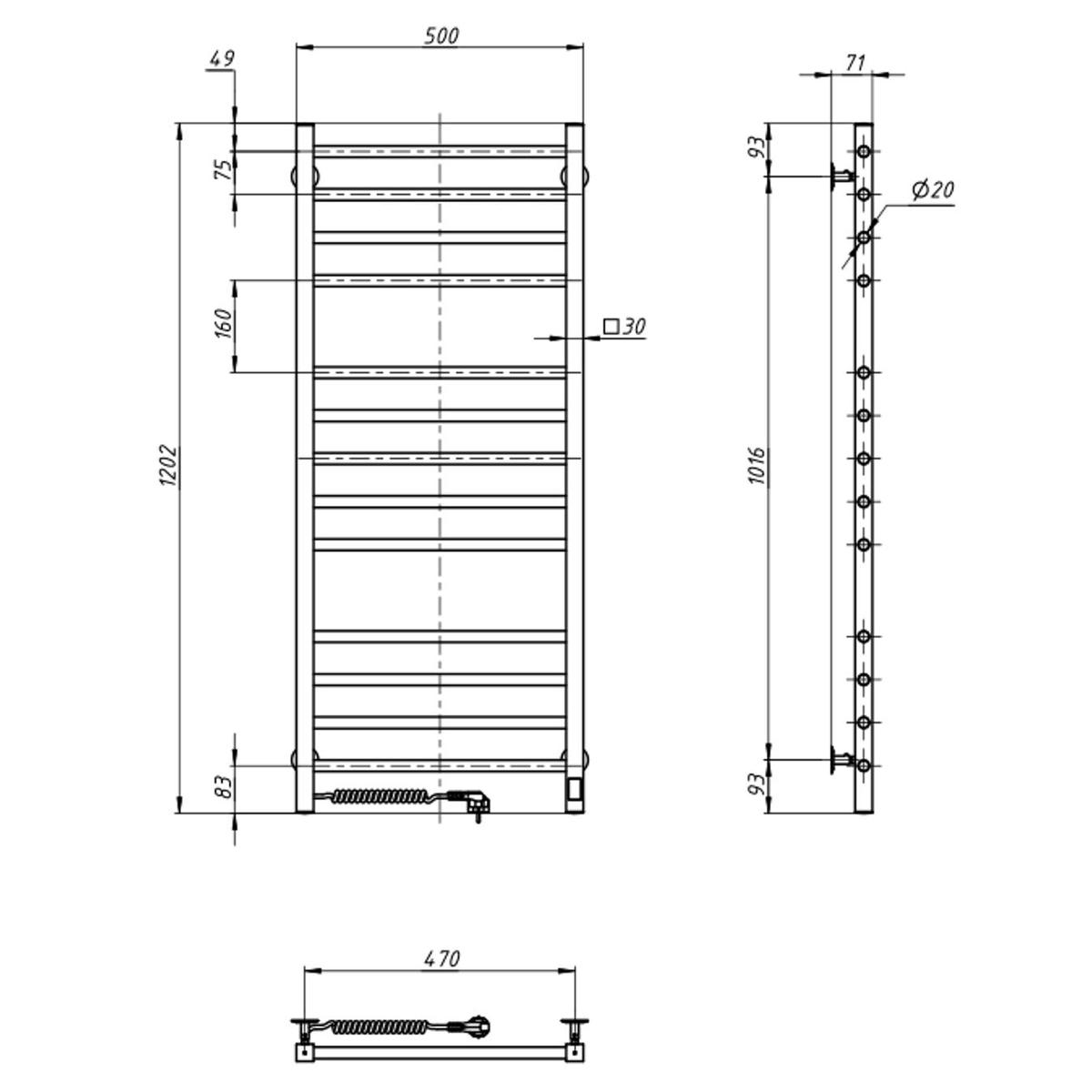

Sections: stands - 30*30 mm, bars - ⌀20 mm


Classic Quadro Line


Material: stainless steel
Connection: left / right
Operating temperature: 55 °C +/- 5 °C
Protection type: IP44
Sections: stands - 30*30 mm, bars - ⌀20 mm


Classic Quadro Line


Material: stainless steel
Connection: left / right
Operating temperature: 55 °C +/- 5 °C
Protection type: IP44
Sections: stands - 30*30 mm, bars - ⌀20 mm
