This model line combines the best achievements in terms of both technology and ergonomics.
COLOR:
USER MANUAL:
MODEL RANGE
| MODEL | COLOR | SIZE (W*H*D), mm | HEAT OUTPUT, W |

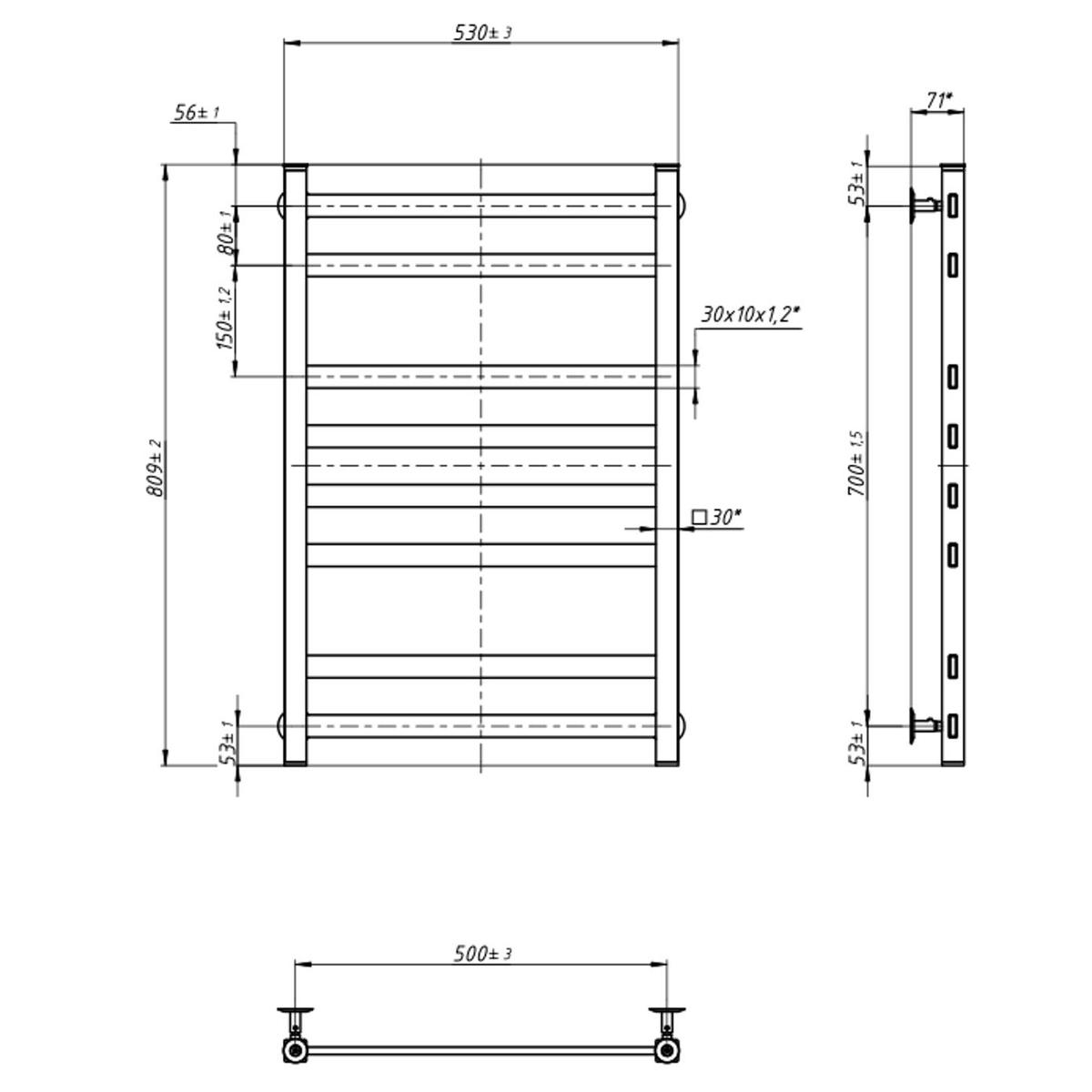

| 00-028050-5080 | Chrome | 530*809*71 | 368 |
| 00-428050-5080 | Gold | 530*809*71 | 368 |
| 00-228050-5080 | Black | 530*809*75 | 368 |

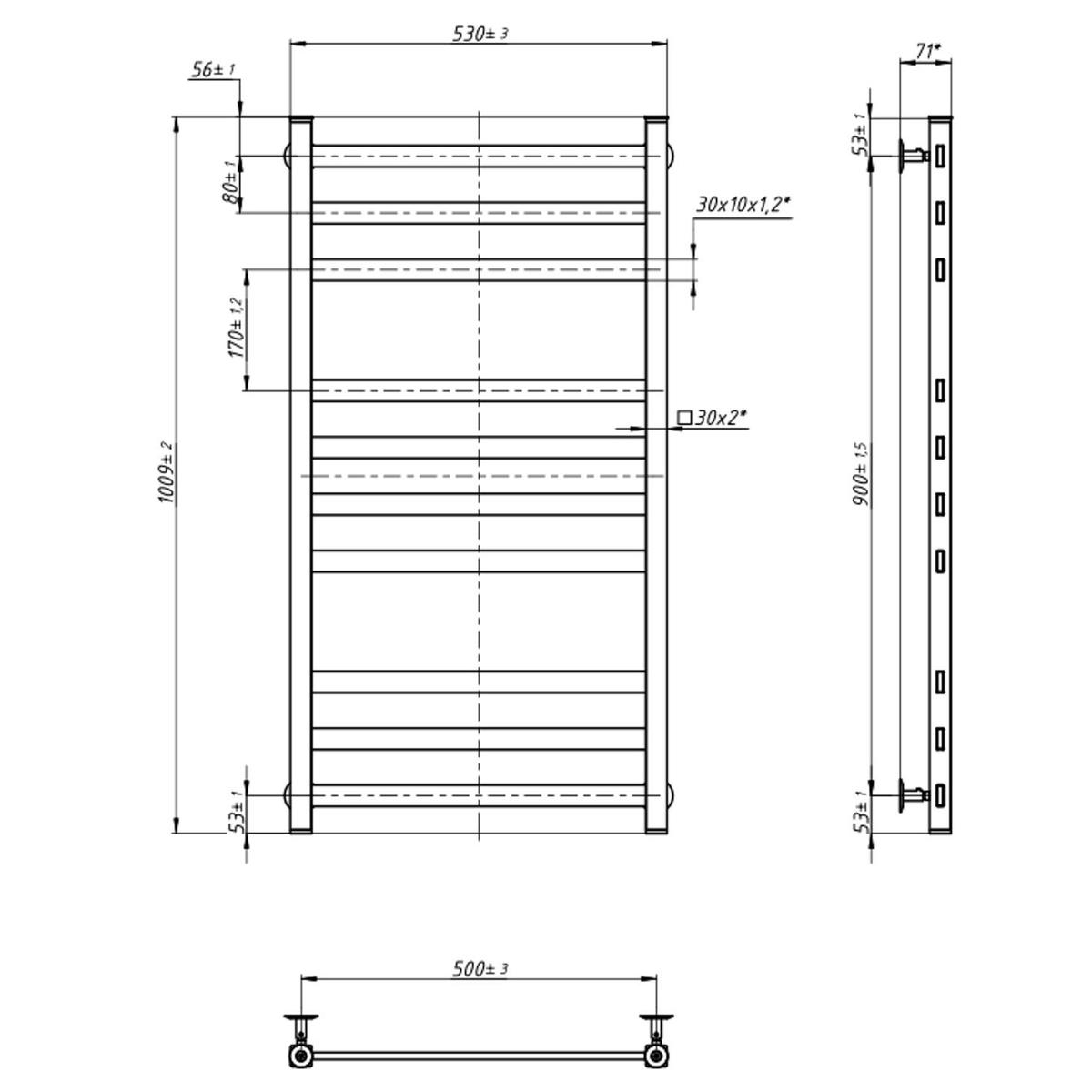

| 00-028050-5010 | Chrome | 530*1009*71 | 460 |
| 00-228050-5010 | Black | 530*1009*71 | 460 |

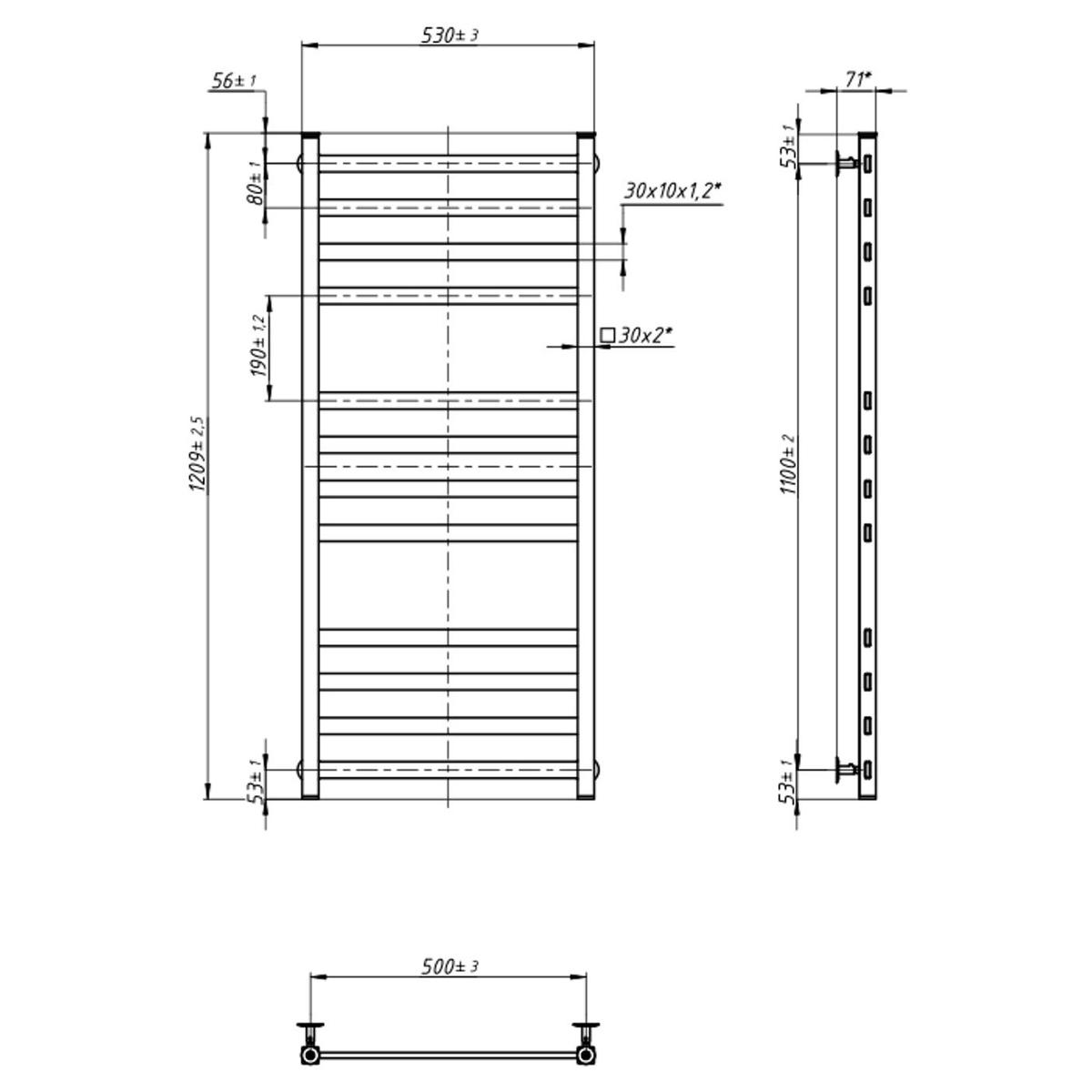

| 00-028050-5012 | Chrome | 530*1209*71 | 552 |
| 00-228050-5012 | Black | 530*1209*71 | 552 |
AVANGARD Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - 30*10 mm
AVANGARD Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - 30*10 mm
AVANGARD Line
Material: stainless steel
Connection: bottom / diagonal
Operating temperature: 95 °C +/- 5 °C
Operating pressure: 10 MPa
Sections: stands - 30*30 mm, bars - 30*10 mm
